Designed as a system. Built for light.
Modular, Flexible, High-Performing

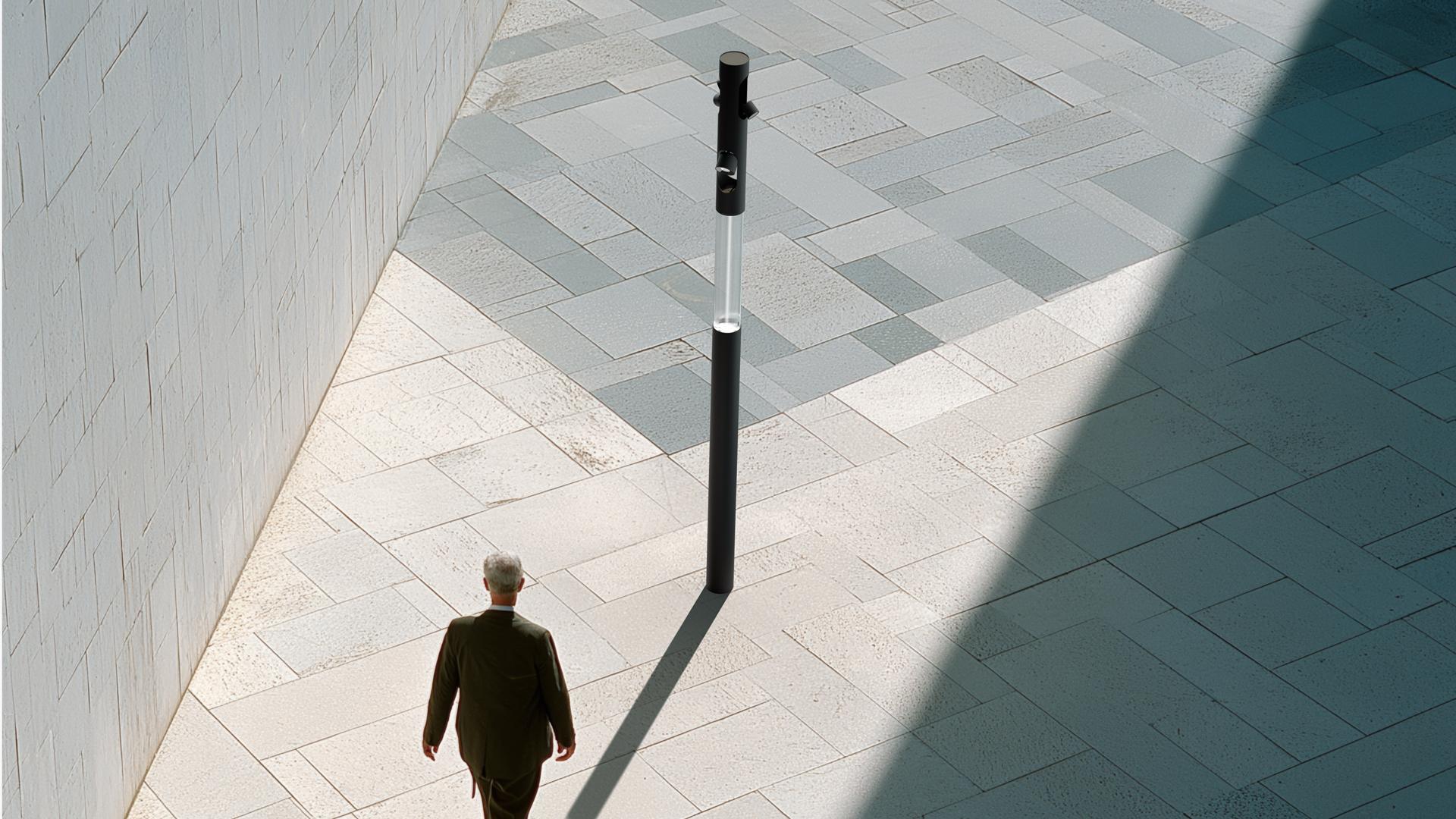

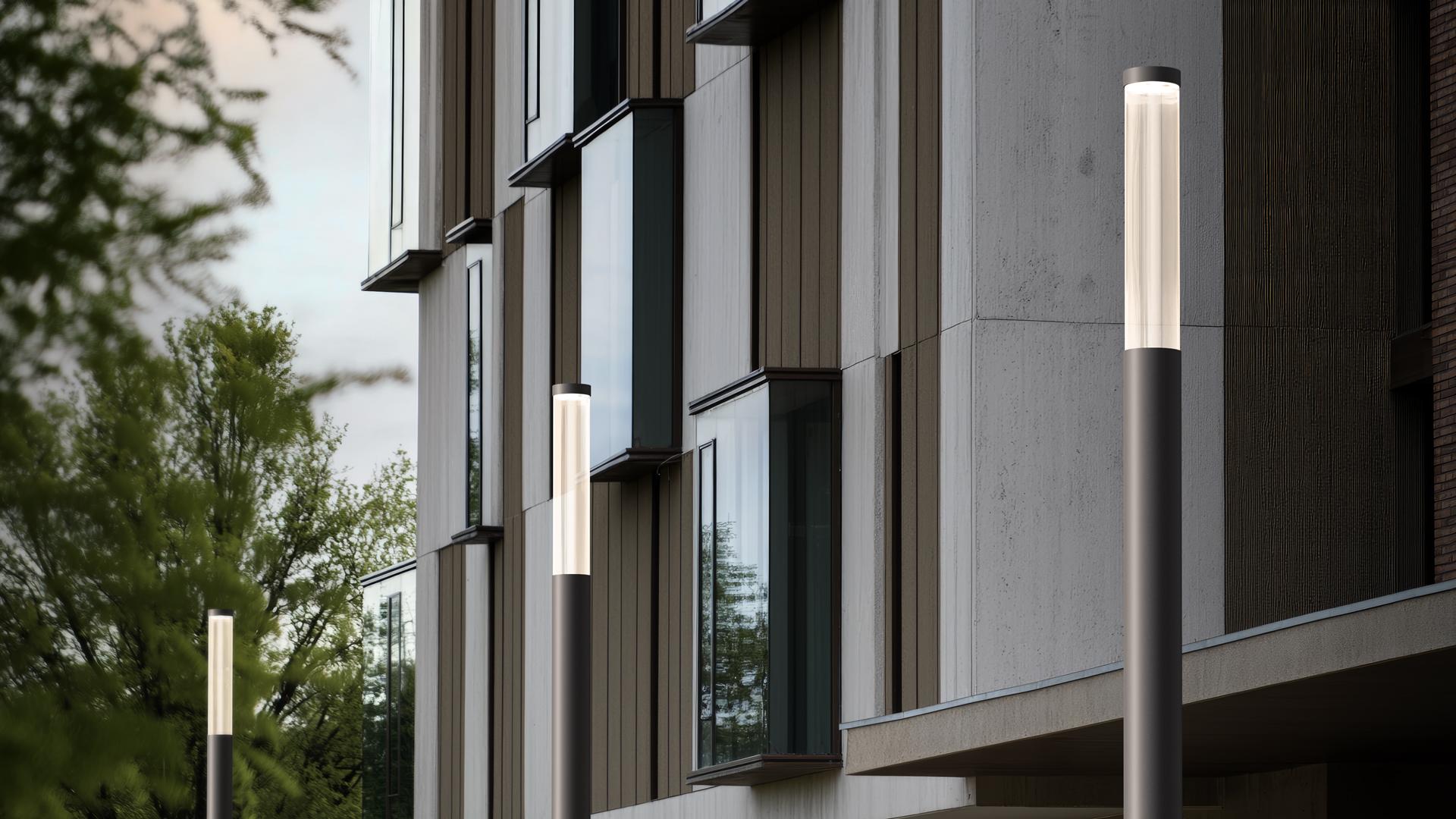

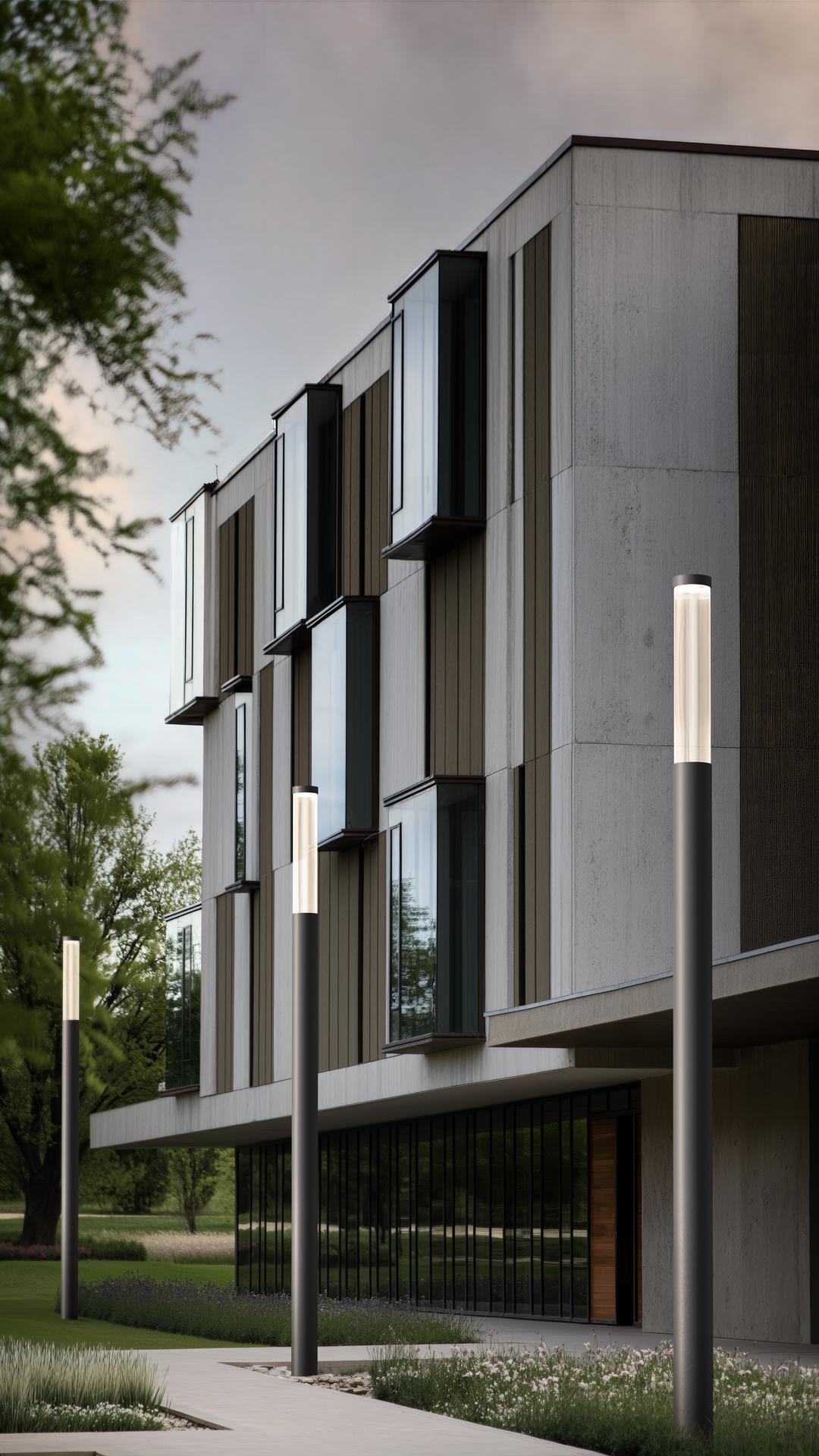

JackO is a pole-mounted system designed to provide maximum design flexibility and high-quality lighting for both public and private outdoor spaces.
Its clean, minimalist design blends seamlessly with any environment, combining diffuse and accent lighting in a single modular element.
The system allows the pole to be configured according to project requirements, with options for height, finish, and combinations of diffuser and projector modules.

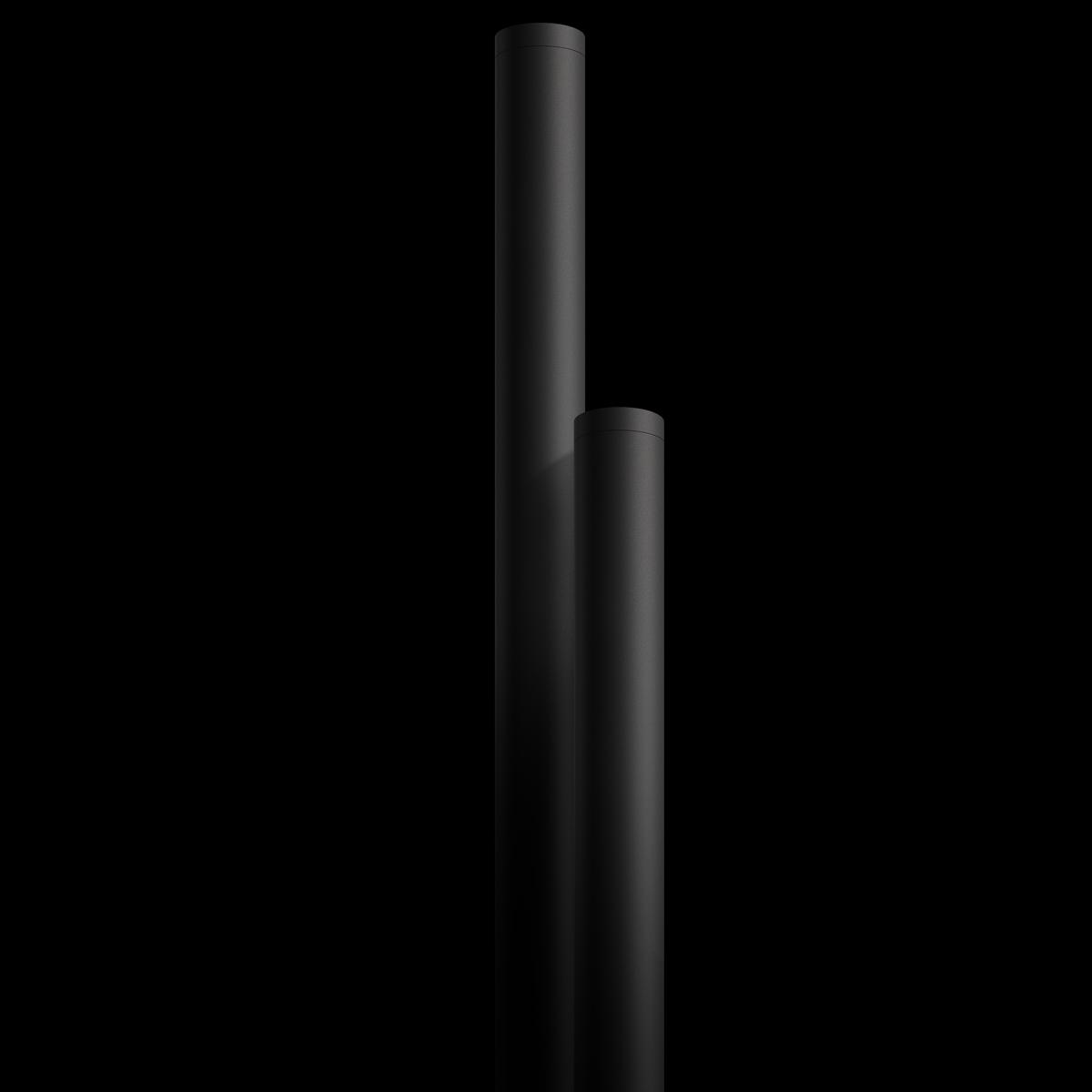

Modular Pole with Customizable Height and Diameter

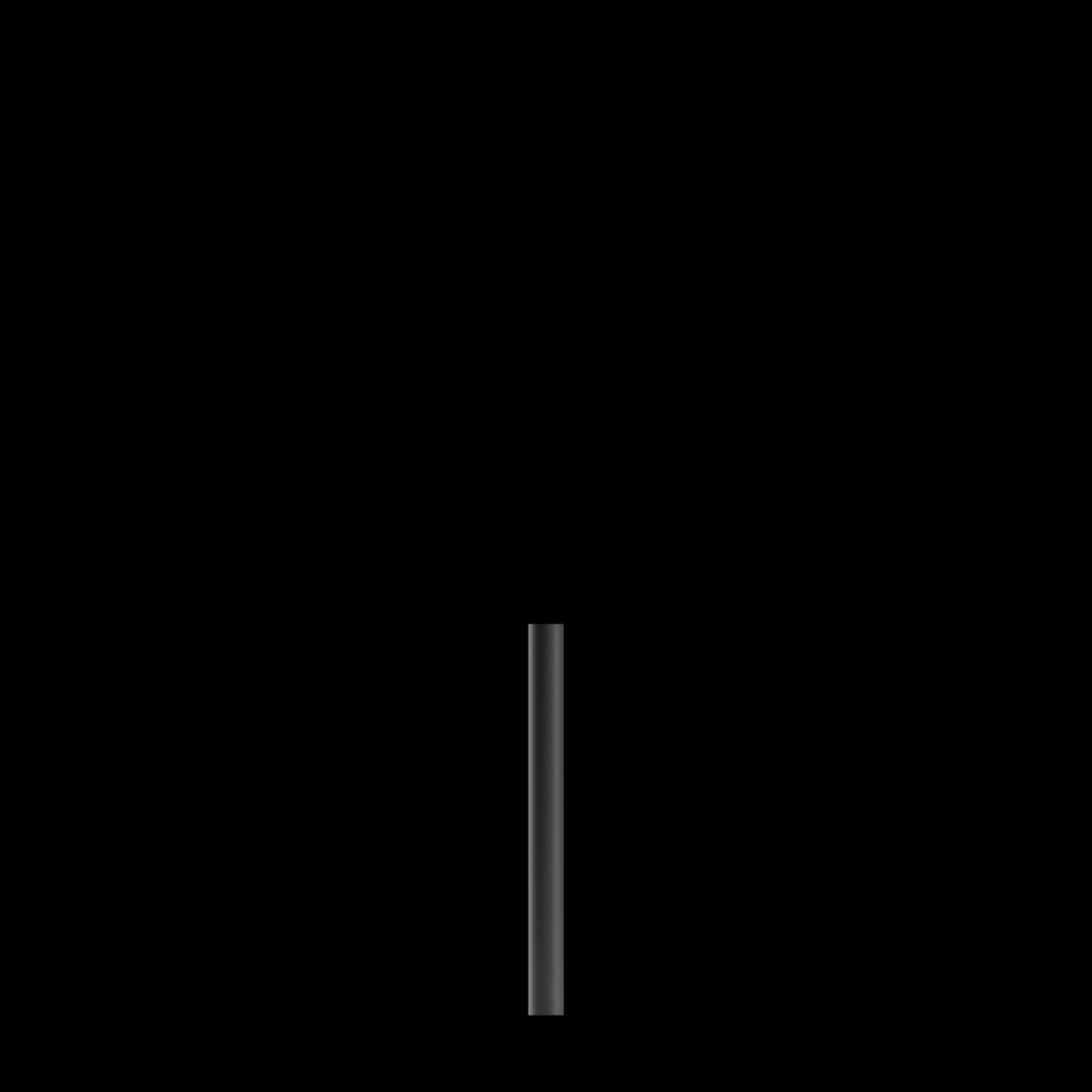

JackO is designed as a modular system, ready to support both diffuse lighting and projector modules, blending discreetly into the surrounding environment. The pole structure allows for numerous configurations, freely combining the diffuse light module, single projector module, and multiple projector module to adapt the system to the varied lighting and design requirements of each project.
Pole diameter: Ø 180 mm

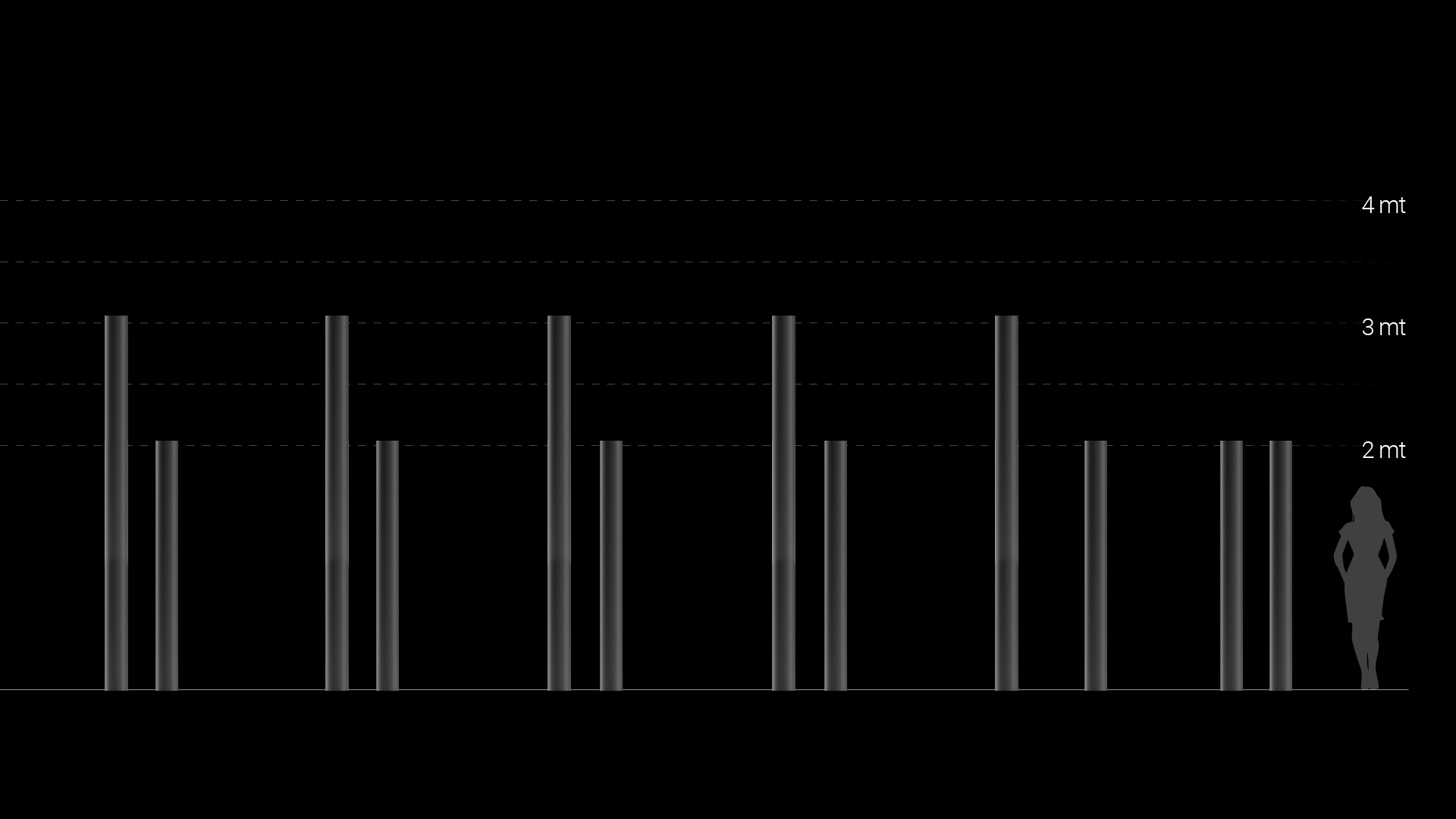

Available heights: 2 m and 3 m
This modularity makes JackO an extremely flexible lighting pole, capable of combining ambient light and targeted accents in a single architectural element.
Finishes for Every Environment

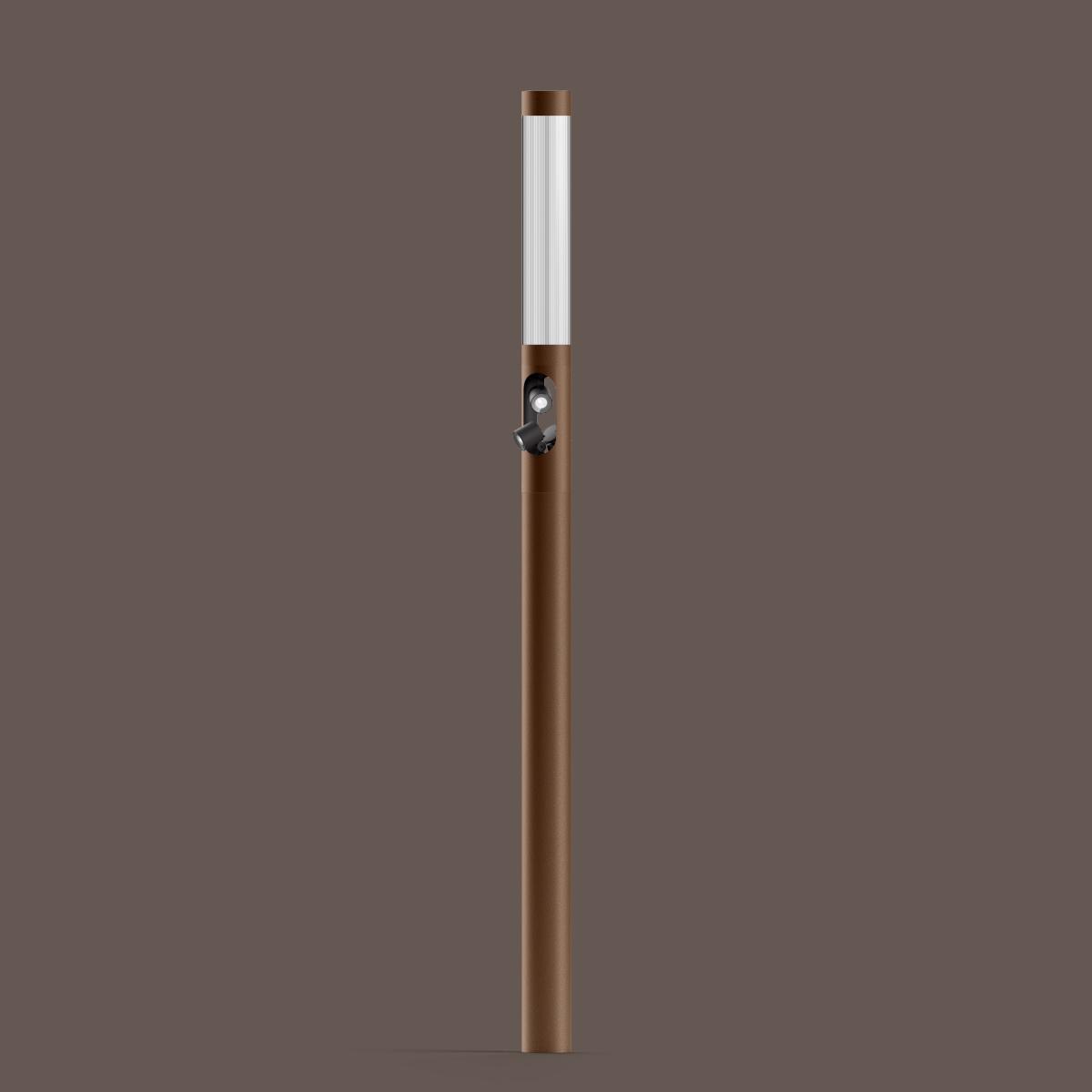

JackO is available in four finishes: Dark Brown, Text Black Grey RAL 7021, and Text Black RAL 9005. The surfaces and materials are engineered for durability and resistance, without compromising the system’s aesthetic.

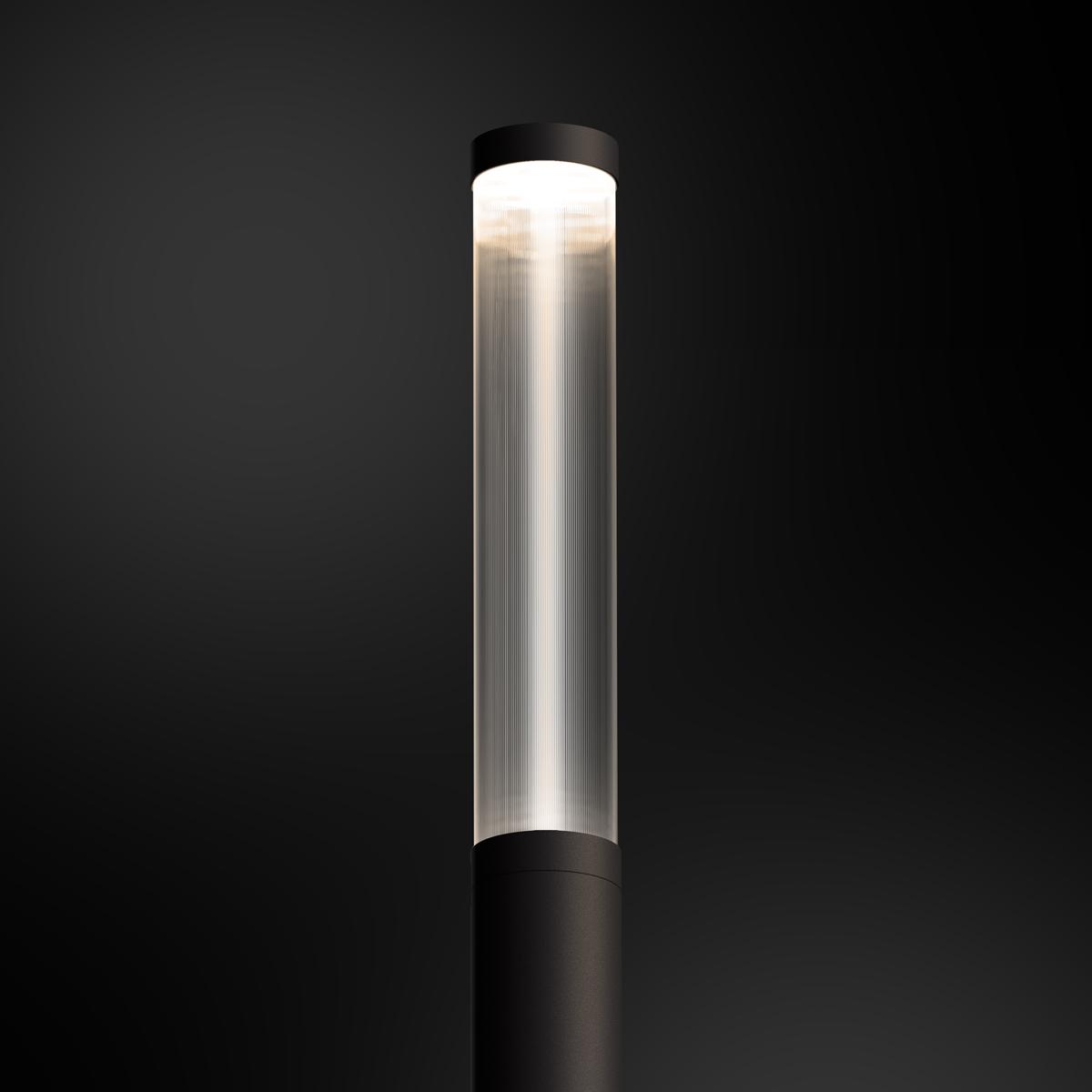

Diffuse and Uniform Lighting
The diffuse module is made of UV-resistant ribbed polycarbonate, designed for durability and high optical performance. The internal light sources ensure a wide and controlled emission, providing excellent visual comfort and uniform light distribution on the ground (illuminated diameter up to 10 meters, with a 5-meter radius around the pole).
The total power is 30 W DC, with available color temperatures of 2200 K, 2700 K, 3000 K, and 4000 K

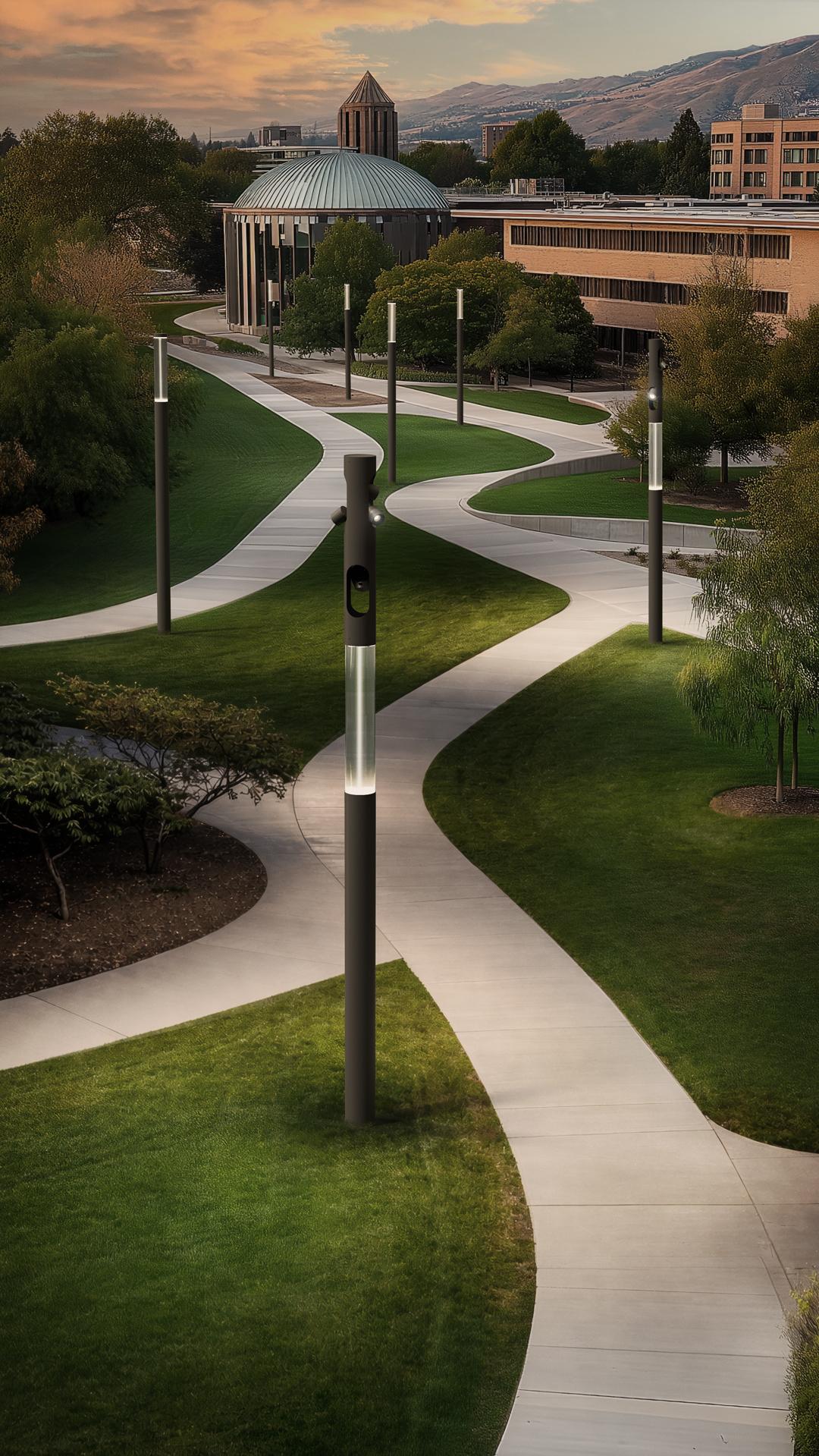

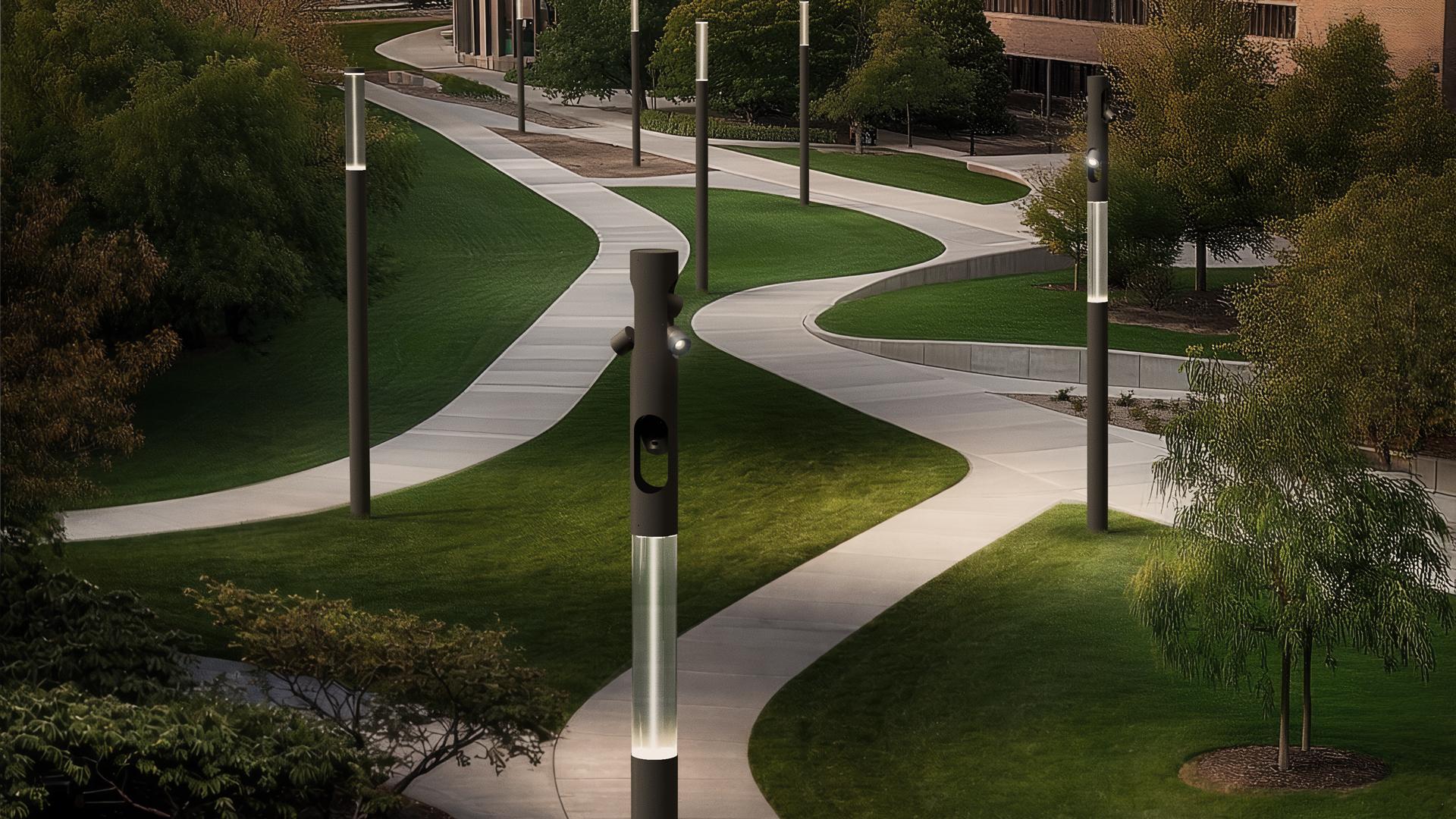

The result is a continuous and balanced light, ideal as primary ambient lighting for pathways, urban spaces, and landscape contexts.

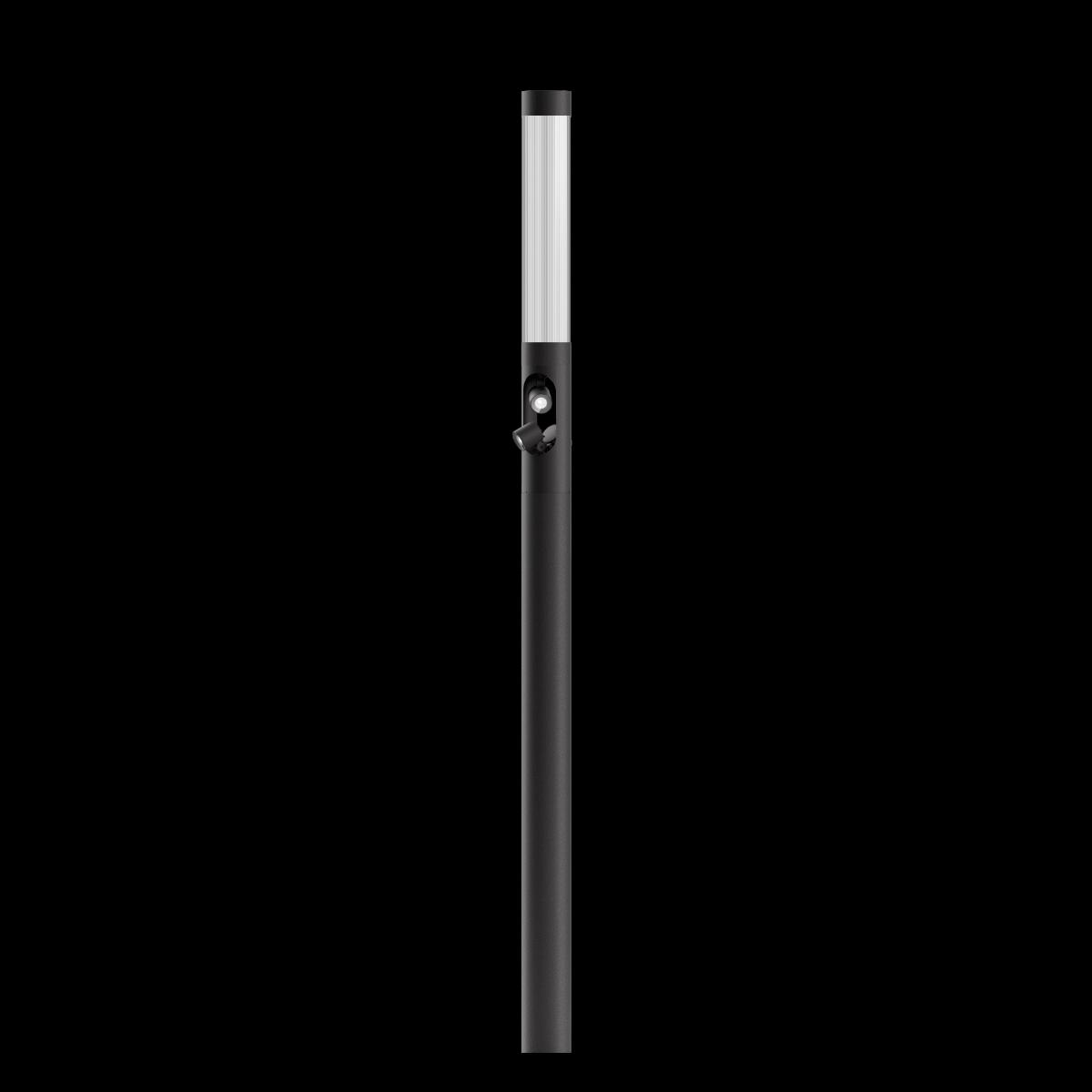

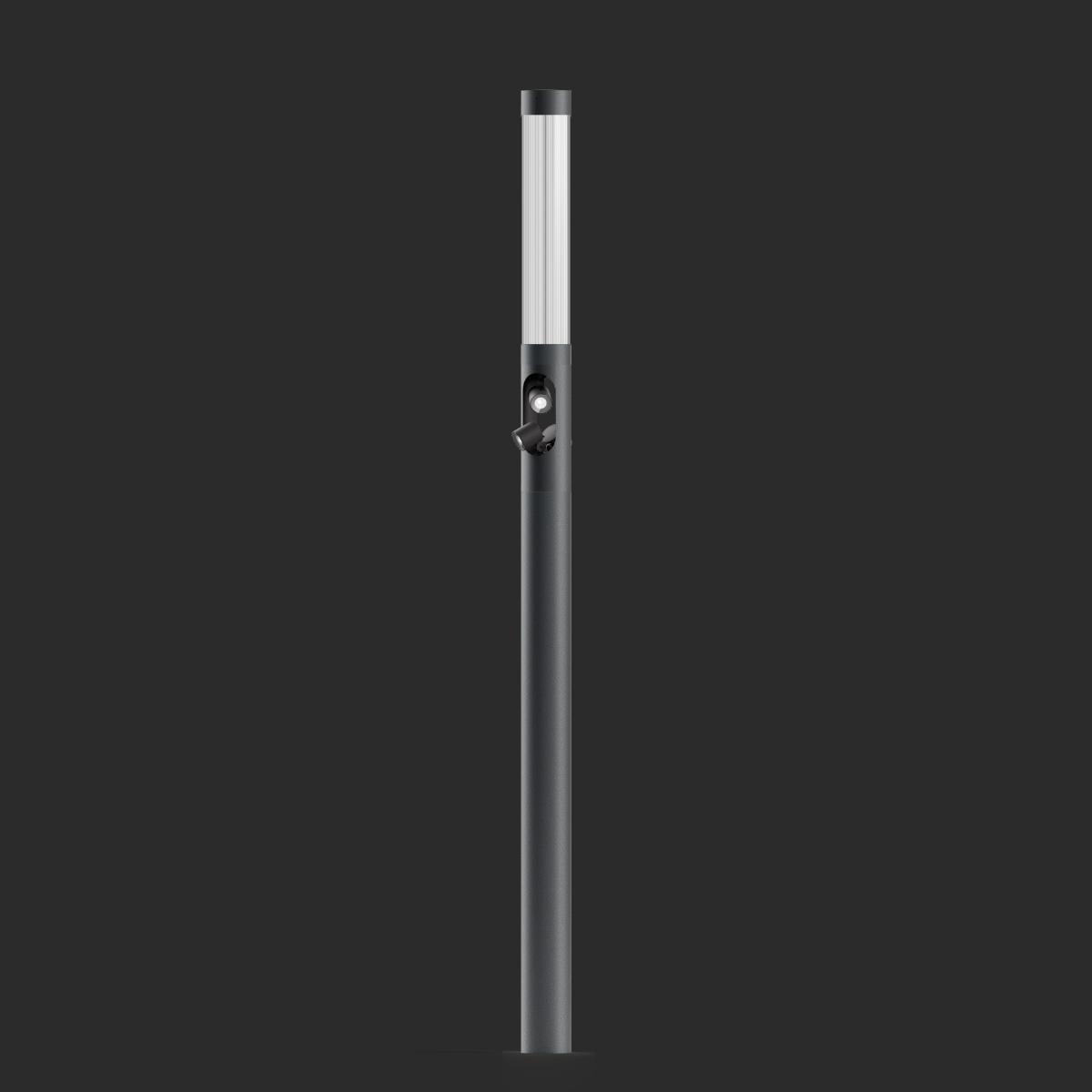

Integrated, Adjustable, and Modular Accent Lighting

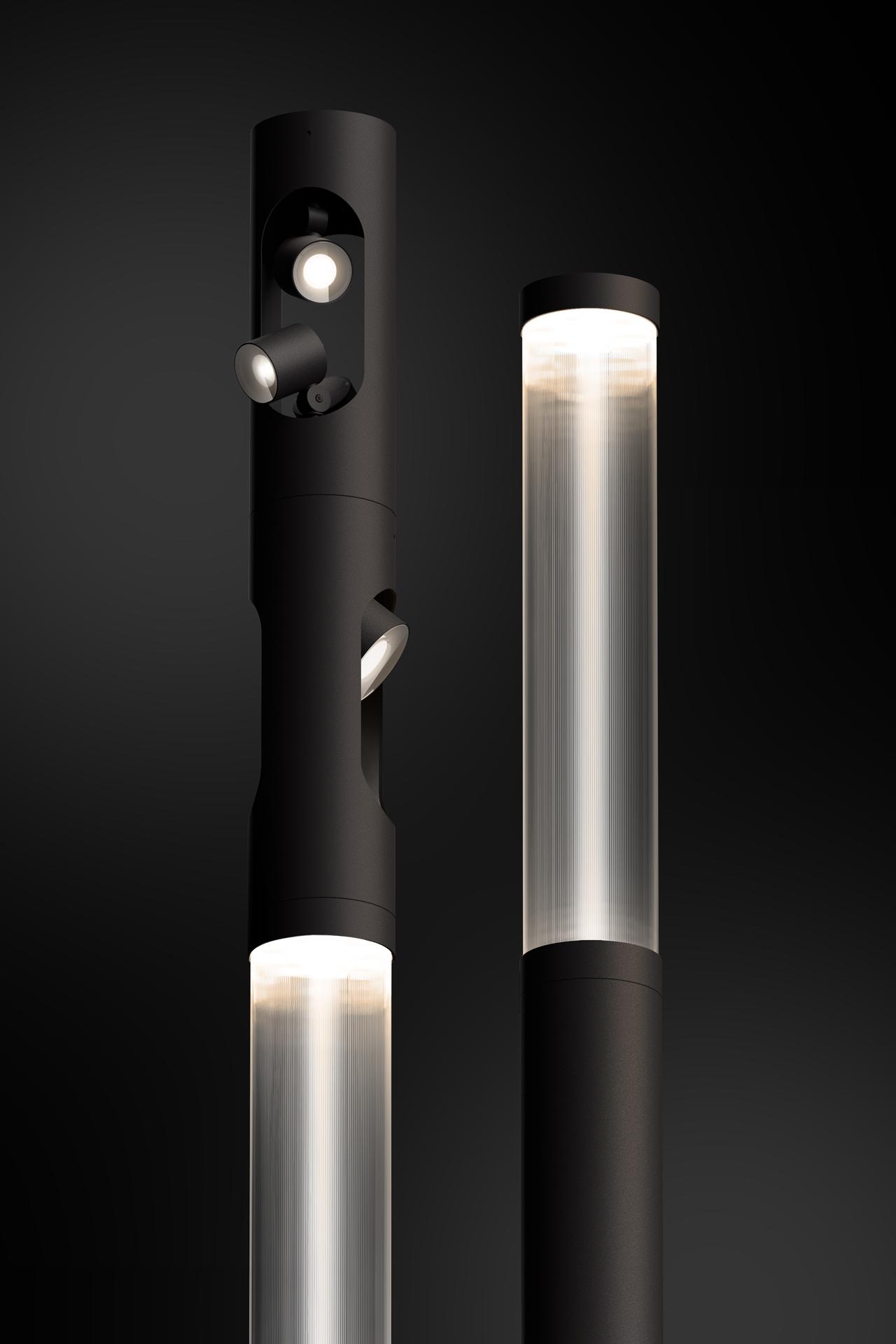

JackO’s projector modules are designed to integrate Periskop projectors, combining diffuse light and targeted light accents in a single pole. The module can rotate up to 350°, while each Periskop is adjustable by ±30°, ensuring precise beam control and maximum compositional flexibility.

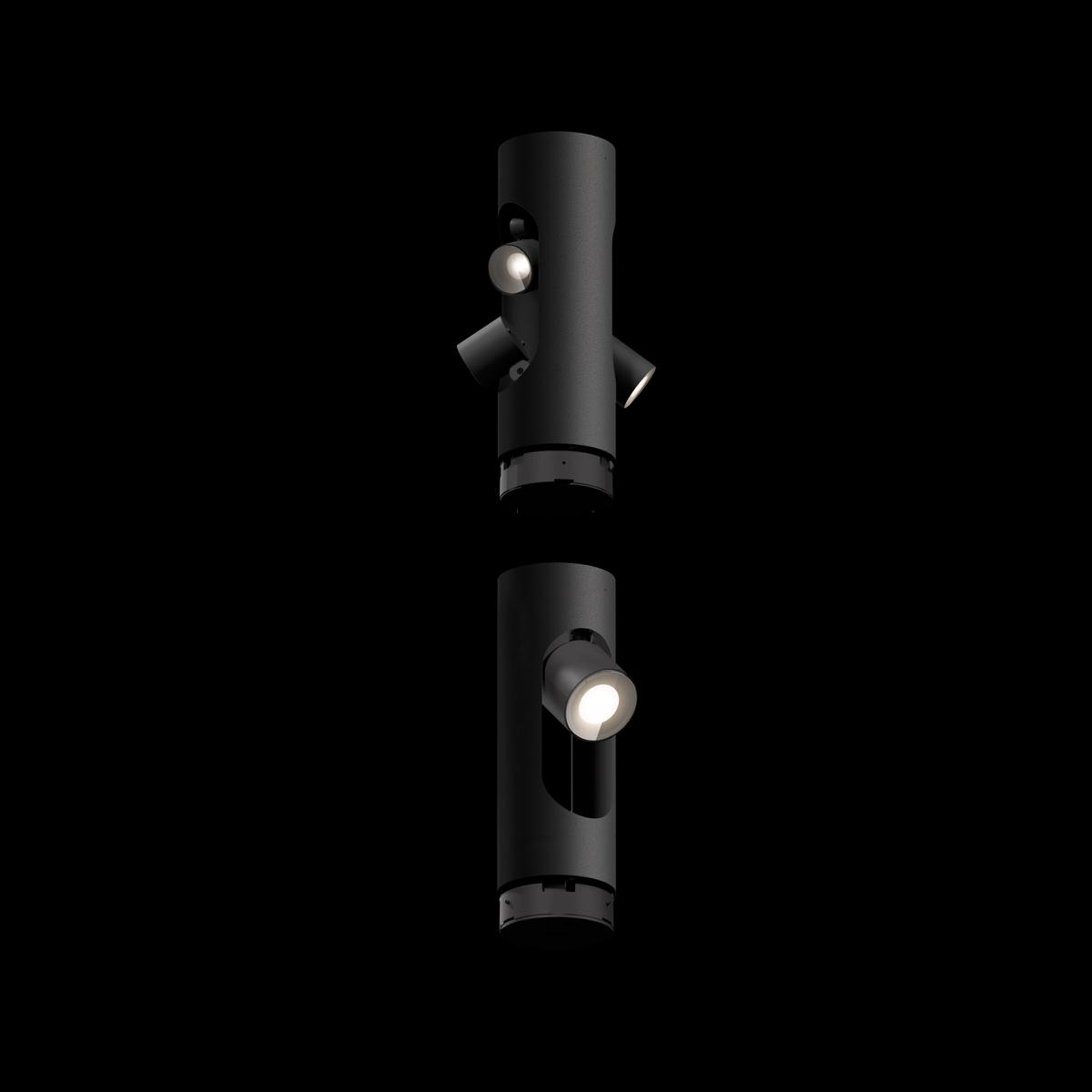

Two configurations are available:
Multiple module, capable of hosting up to 4 Periskop Ø 80 mm projectors (2 upper and 2 lower), ideal for complex lighting scenarios.
Single module, designed to house a Periskop Ø 115 mm, for focused accents and more essential compositions.
