Ribbon
98017
LED Strip | 300 topLED 72 W DC 24 V
14.4 W/m | 0 Lm/m
| IP | IP20 |
|---|---|

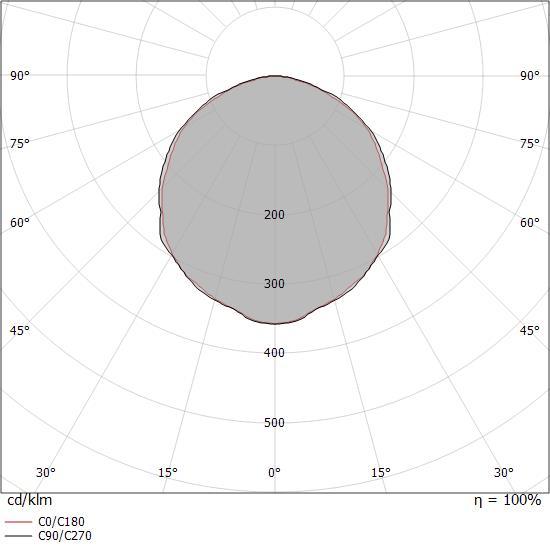

| Degrees | 109.6° |
| CCT | Verde |
| Delivered lumens | 283 lm |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 98.3 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 141,00 € |
| Product category | E |
Technical description

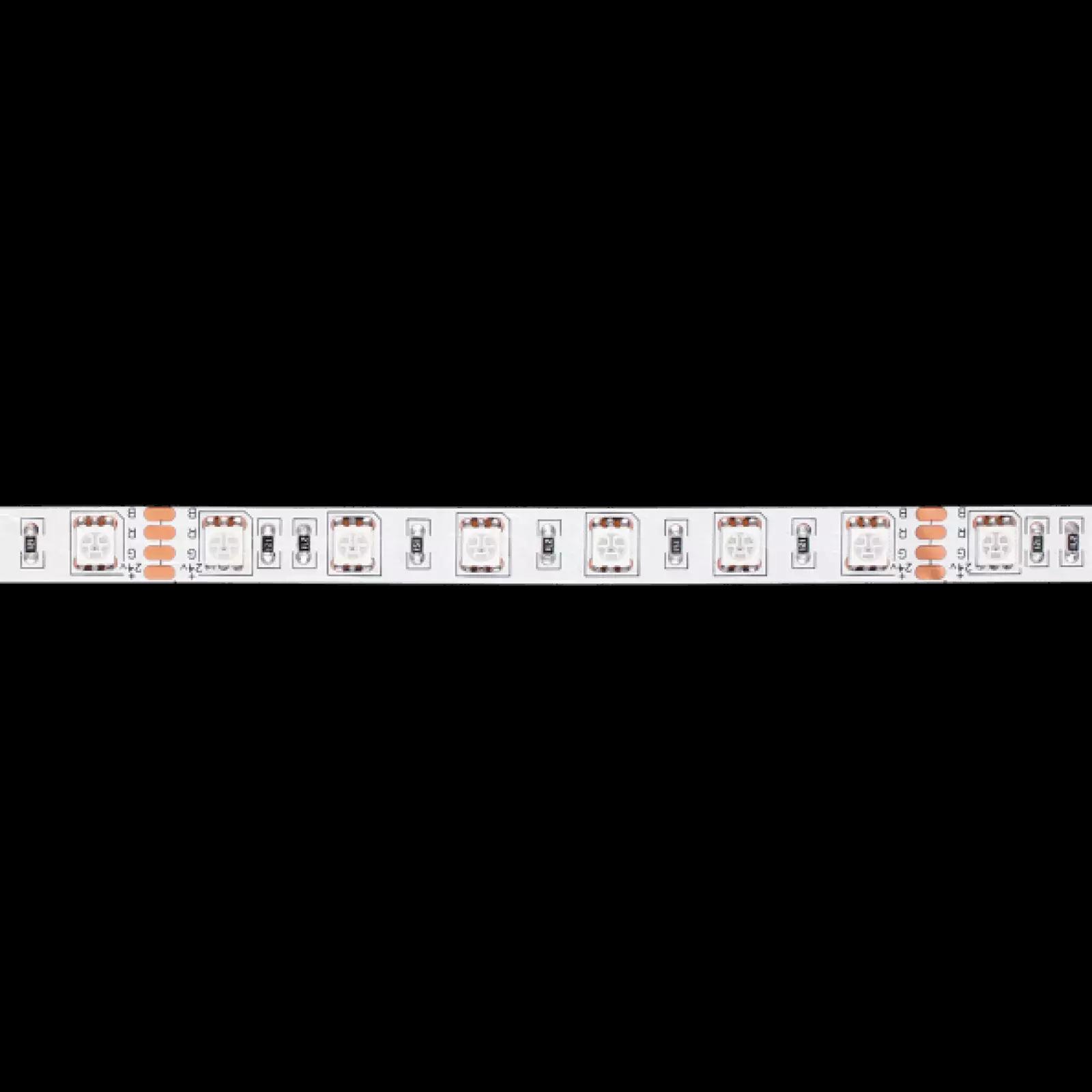

Single emission led strip for indoor application. The RGB LED light source is composed of 300 stripled LEDs the source luminous flux is 2209 lm, with a 30.7 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish.
The ingress protection degree is IP20; The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 72 W The power supply cable is included and features a 0.50 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profiles
You've seen 4 products out of 17
Electronics

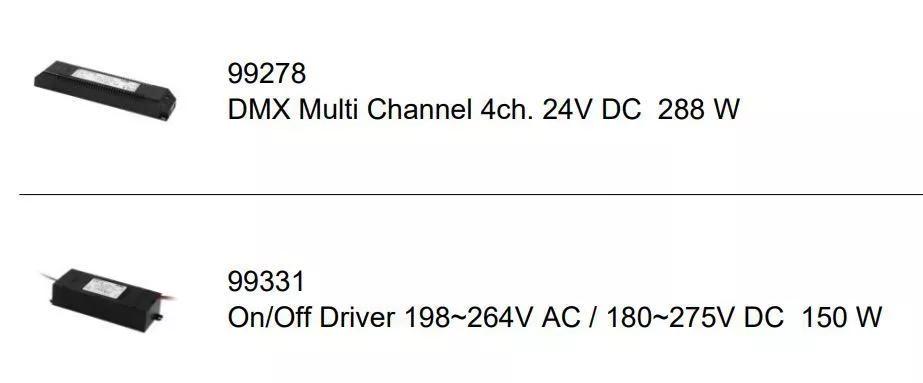

Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
You've seen 1 product out of 1
