PU_C Plus
C0025NDI05019
The code C0025NDI05019 will be valid as of March 2025. You can still continue with this code or use the C00123WHNDI code valid until March 2025.Outdoor / Flex lights
LED Strip | 350 topLED 62.5 W DC 24 V
12.5 W/m | 1312.6 Lm/m
| IP | IP66 |
|---|---|
| Optic | Diffused |
| CCT | 4000 K |
| CRI | >90 |
| Delivered lumens | -- |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

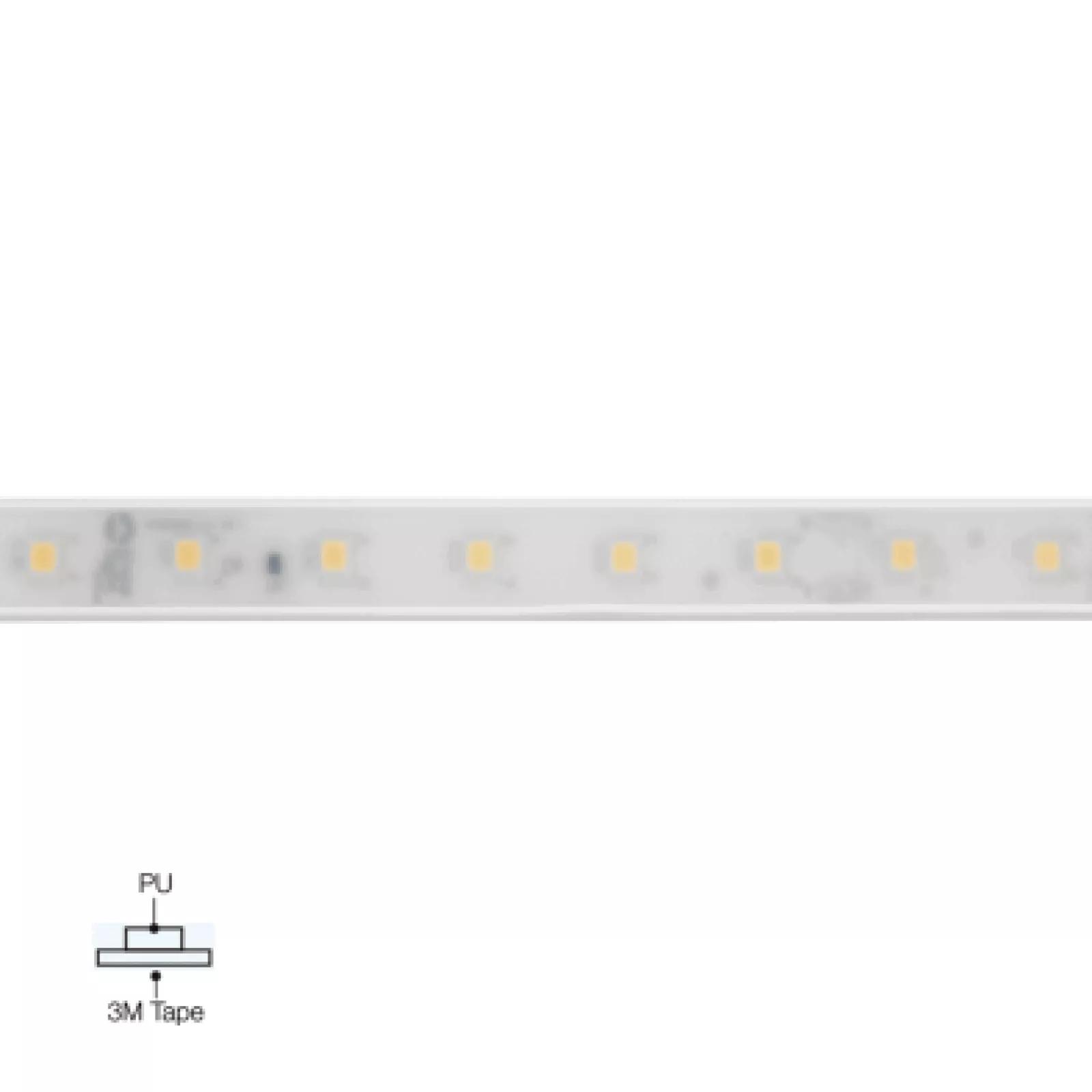

Single emission led strip for outdoor application. The natural white LED light source with a diffused light distribution is composed of 350 topled LEDs with CCT of 4000 K and a CRI >90; the source luminous flux is 7931 lm, with a 126.9 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP66; the total weight is of 0.575 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 62.5 W. The power supply cable is included and features a 1(M)x0.25m + 1(F)x1 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
You've seen 4 products out of 5
Downloads
Documentation
2D/3D Drawings
Accessories
