Luno_20-27

C-K100017

Indoor / Flex Lights

Round surface profile

Anodised aluminium

Delivered lumens	--
Finishes	Anodised aluminium
Installation position	Wall lights, Ceiling
List price (excl. VAT)	16,00 €
Product category	A

Technical description

Single emission for indoor application.

The device body is made of aluminium and features a anodised aluminium finish, processed by means of anodisation. Surface treatment of the product body with chemical conversion of aluminum, designed to ensure maximum long‑term resistance.

and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Compatible products

Ribbon Plus

Discover more

18 product codes

Ribbon Plus

LED Strip | 350 topLED 24 W DC 24 V

4.8 W/m | 550 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0021MDI05000	24 W	2750 lm	2700 K	Diffused	White	>90
C0021WDI05000	24 W	2930 lm	3000 K	Diffused	White	>90
C0021NDI05000	24 W	3110 lm	4000 K	Diffused	White	>90

Ribbon Plus

LED Strip | 700 topLED 96 W DC 24 V

19.2 W/m | 2222 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0039MDI05000	96 W	11110 lm	2700 K	Diffused	White	>90
C0039WDI05000	96 W	11530 lm	3000 K	Diffused	White	>90
C0039NDI05000	96 W	12010 lm	4000 K	Diffused	White	>90

Ribbon Plus

LED Strip | 700 topLED 48 W DC 24 V

9.6 W/m | 1122 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0022MDI05000	48 W	5610 lm	2700 K	Diffused	White	>90
C0022WDI05000	48 W	5880 lm	3000 K	Diffused	White	>90
C0022NDI05000	48 W	6260 lm	4000 K	Diffused	White	>90

Ribbon Plus

LED Strip | 700 topLED 72 W DC 24 V

14.4 W/m | 1762 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0029MDI05000	72 W	8810 lm	2700 K	Diffused	White	>90
C0029WDI05000	72 W	9350 lm	3000 K	Diffused	White	>90
C0029NDI05000	72 W	10110 lm	4000 K	Diffused	White	>90

Ribbon Plus

LED Strip | 350 topLED 48 W DC 24 V

9.6 W/m | 1116 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0027MDI05000	48 W	5580 lm	2700 K	Diffused	White	>90
C0027WDI05000	48 W	5750 lm	3000 K	Diffused	White	>90
C0027NDI05000	48 W	6300 lm	4000 K	Diffused	White	>90

Ribbon Plus WT

LED Strip | 600 topLED 65 W DC 24 V

13 W/m | 0 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	Control	CRI
C0027SDI05000	65 W	4048 lm	From 1800 to 3000 K	Diffused	White		>90

Ribbon Plus Dynamic White

LED Strip | 600 topLED 62.5 W DC 24 V

12.5 W/m | 0 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	Control	CRI
C0027DDI05000	62.5 W	5087 lm	From 1800 to 4000 K	Diffused	White		>90

Ribbon Plus RGBW

LED Strip | 600 topLED 96 W DC 24 V

19.2 W/m | 0 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	Control	CRI
C0027VDI05000	96 W	3481 lm	RGB-W 3000 K	Diffused	White		>90

Ribbon PRO

Discover more

18 product codes

Ribbon PRO

LED Strip | 400 topLED 18 W DC 24 V

3.6 W/m | 511.6 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0023MDI05000	18 W	2558 lm	2700 K	Diffused	White	>90
C0023WDI05000	18 W	2590 lm	3000 K	Diffused	White	>90
C0023NDI05000	18 W	2754 lm	4000 K	Diffused	White	>90

Ribbon PRO

LED Strip | 640 topLED 33.5 W DC 24 V

6.7 W/m | 927.6 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0024MDI05000	33.5 W	4638 lm	2700 K	Diffused	White	>90
C0024WDI05000	33.5 W	4791 lm	3000 K	Diffused	White	>90
C0024NDI05000	33.5 W	5115 lm	4000 K	Diffused	White	>90

Ribbon PRO

LED Strip | 400 topLED 48 W DC 24 V

9.6 W/m | 1367 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0028MDI05000	48 W	6835 lm	2700 K	Diffused	White	>90
C0028WDI05000	48 W	7088 lm	3000 K	Diffused	White	>90
C0028NDI05000	48 W	7519 lm	4000 K	Diffused	White	>90

Ribbon PRO

LED Strip | 640 topLED 68 W DC 24 V

13.6 W/m | 1889.4 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0030MDI05000	68 W	9447 lm	2700 K	Diffused	White	>90
C0030WDI05000	68 W	9806 lm	3000 K	Diffused	White	>90
C0030NDI05000	68 W	10489 lm	4000 K	Diffused	White	>90

Ribbon PRO

LED Strip | 800 topLED 84 W DC 24 V

16.8 W/m | 2371.4 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0031MDI05000	84 W	11857 lm	2700 K	Diffused	White	>90
C0031WDI05000	84 W	12098 lm	3000 K	Diffused	White	>90
C0031NDI05000	84 W	13013 lm	4000 K	Diffused	White	>90

Ribbon PRO

LED Strip | 680 topLED 43 W DC 48 V

8.6 W/m | 1296.4 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0040MDI05000	43 W	6482 lm	2700 K	Diffused	White	>90
C0040WDI05000	43 W	7519 lm	3000 K	Diffused	White	>90
C0040NDI05000	43 W	7792 lm	4000 K	Diffused	White	>90

PU_C Plus

Discover more

13 product codes

PU_C Plus RGBW

LED Strip | 600 topLED 96 W DC 24 V

19.2 W/m | 0 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	Control	CRI
C0025VDI05019	96 W	5395 lm	RGB-W 3000 K	Diffused	White		>90

PU_C Plus 140 LEDs/m

LED Strip | 700 topLED 36 W DC 24 V

7.2 W/m | 756 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0019MDI05019	36 W	3040 lm	2700 K	Diffused	White	>90
C0019WDI05019	36 W	3314 lm	3000 K	Diffused	White	>90
C0019NDI05019	36 W	3458 lm	4000 K	Diffused	White	>90

PU_C Plus 140 LEDs/m

LED Strip | 700 topLED 125 W DC 24 V

25 W/m | 2625 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0026MDI05019	125 W	11942 lm	2700 K	Diffused	White	>90
C0026WDI05019	125 W	11731 lm	3000 K	Diffused	White	>90
C0026NDI05019	125 W	12264 lm	4000 K	Diffused	White	>90

PU_C Plus 70 LEDs/m

LED Strip | 350 topLED 16 W DC 24 V

3.2 W/m | 336 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0018MDI05019	16 W	1424 lm	2700 K	Diffused	White	>90
C0018WDI05019	16 W	1550 lm	3000 K	Diffused	White	>90
C0018NDI05019	16 W	1628 lm	4000 K	Diffused	White	>90

PU_C Plus 70 LEDs/m

LED Strip | 350 topLED 62.5 W DC 24 V

12.5 W/m | 1312.6 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0025MDI05019	62.5 W	5941 lm	2700 K	Diffused	White	>90
C0025WDI05019	62.5 W	6334 lm	3000 K	Diffused	White	>90
C0025NDI05019	62.5 W	6873 lm	4000 K	Diffused	White	>90

Silicone

Discover more

17 product codes

Silicone 120 LEDs/m

LED Strip | 600 topLED 48 W DC 24 V

9.6 W/m | 808 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0052MDI05019	48 W	4040 lm	2700 K	Diffused	90
C0052WDI05019	48 W	4323 lm	3000 K	Diffused	90
C0052NDI05019	48 W	4490 lm	4000 K	Diffused	90

Silicone 168 LEDs/m

LED Strip | 1 topLED 72 W DC 24 V

14.4 W/m | 1458 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0053MDI05019	72 W	6786 lm	2700 K	Diffused	90
C0053WDI05019	72 W	7127 lm	3000 K	Diffused	90
C0053NDI05019	72 W	7189 lm	4000 K	Diffused	90

Silicone 60 LEDs/m

LED Strip | 1 topLED 24 W DC 24 V

4.8 W/m | 423 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0051MDI05019	24 W	1996 lm	2700 K	Diffused	90
C0051WDI05019	24 W	2077 lm	3000 K	Diffused	90
C0051NDI05019	24 W	2189 lm	4000 K	Diffused	90

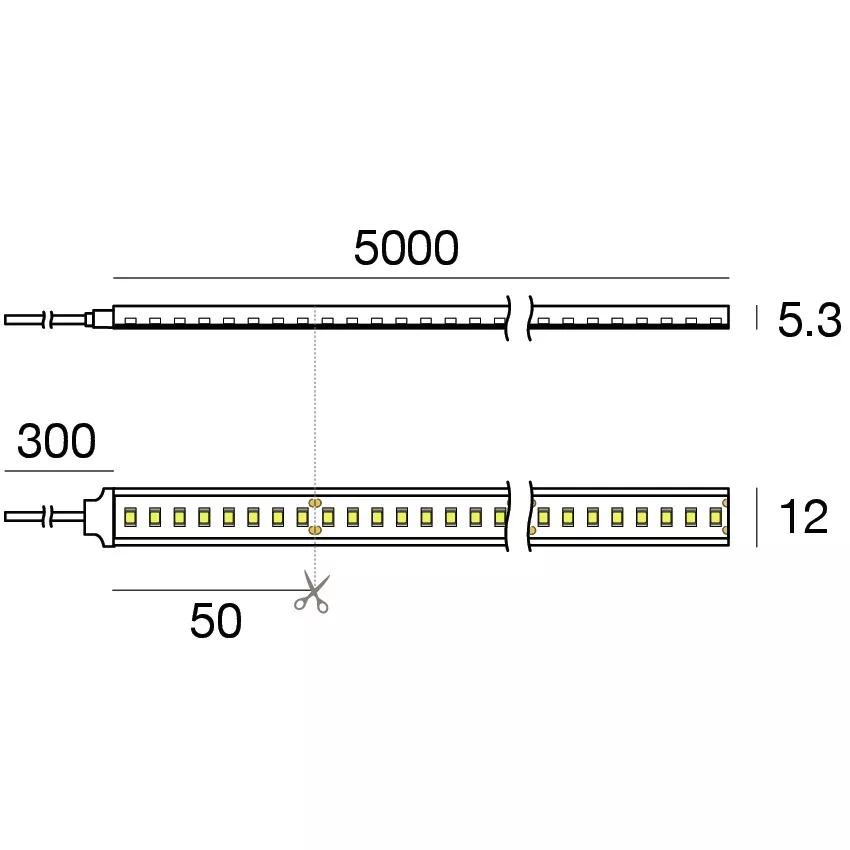

Silicone High Efficiency 160 LEDs/m

LED Strip | 800 topLED 60 W DC 24 V

12 W/m | 1464 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0054MDI05019	60 W	7320 lm	2700 K	Diffused	85
C0054WDI05019	60 W	7782 lm	3000 K	Diffused	85
C0054NDI05019	60 W	8266 lm	4000 K	Diffused	85

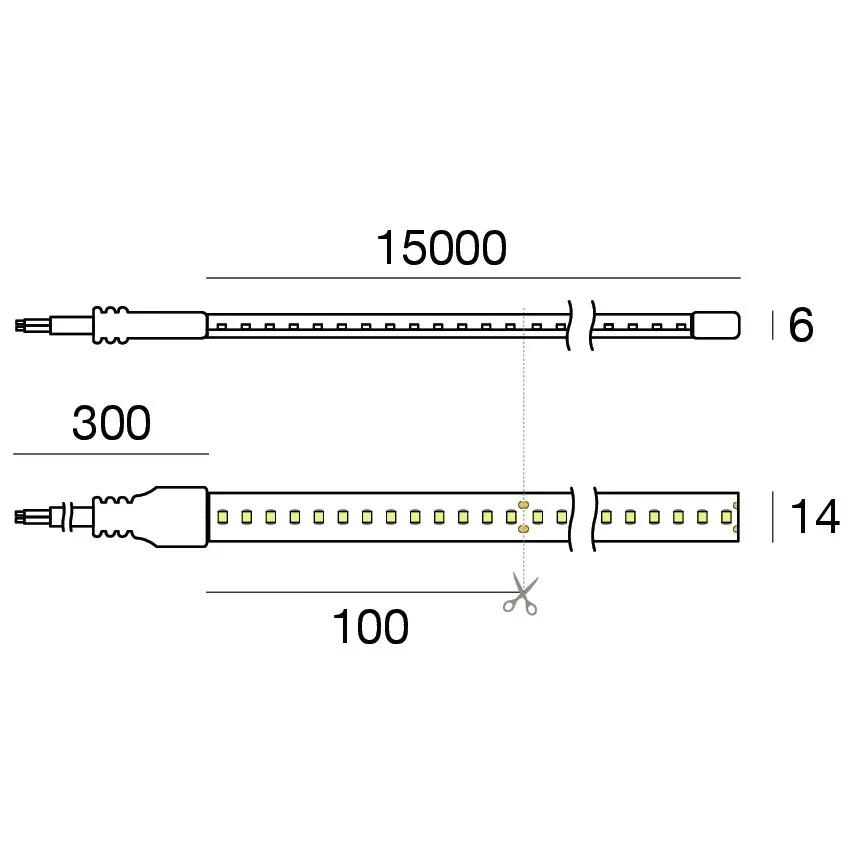

Silicone 130 LEDs/m

LED Strip | 1 topLED 207 W DC 48 V

13.8 W/m | 1239.73 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0055MDI15030	207 W	18596 lm	2700 K	Diffused	White	90
C0055WDI15030	207 W	19796 lm	3000 K	Diffused	White	90
C0055NDI15030	207 W	21440 lm	4000 K	Diffused	White	90

Silicone 168 LEDs/m

LED Strip | 168 topLED 24 W DC 24 V

4.8 W/m | 452.4 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Control	CRI
C0065MDI05019	24 W	2262 lm	2700 K	Diffused		90
C0065NDI05019	24 W	2396 lm	4000 K	Diffused		90

Ribbon Cob

Discover more

3 product codes

Ribbon Cob

LED Strip | 1 topLED 50 W DC 24 V

10 W/m | 955.8 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0037MDI05000	50 W	4779 lm	2700 K	Diffused	White	90
C0037WDI05000	50 W	4892 lm	3000 K	Diffused	White	90
C0037NDI05000	50 W	5690 lm	4000 K	Diffused	White	90

Ribbon

Discover more

36 product codes

Ribbon Basic_V2

LED Strip | 300 topLED 24 W DC 24 V

4.8 W/m | 466.2 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0033MDI05000	24 W	2331 lm	2700 K	Diffused	White	90
C0033WDI05000	24 W	2457 lm	3000 K	Diffused	White	90
C0033NDI05000	24 W	2612 lm	4000 K	Diffused	White	90

Ribbon Basic_V2

LED Strip | 600 topLED 48 W DC 24 V

9.6 W/m | 932.4 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0036MDI05000	48 W	4662 lm	2700 K	Diffused	White	90
C0036WDI05000	48 W	5057 lm	3000 K	Diffused	White	90
C0036NDI05000	48 W	5247 lm	4000 K	Diffused	White	90

Ribbon Slim_V2 160 LEDs/m

LED Strip | 1 topLED 52.5 W DC 24 V

10.5 W/m | 1132.2 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0048MDI05000	52.5 W	5661 lm	2700 K	Diffused	White	90
C0048WDI05000	52.5 W	6048 lm	3000 K	Diffused	White	90
C0048NDI05000	52.5 W	6632 lm	4000 K	Diffused	White	90

Ribbon HE 160 LEDs/m

LED Strip | 1 topLED 108 W DC 24 V

21.6 W/m | 2767.6 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0044MDI05000	108 W	13838 lm	2700 K	Diffused	83+
C0044WDI05000	108 W	14506 lm	3000 K	Diffused	83+
C0044NDI05000	108 W	15187 lm	4000 K	Diffused	83+

Ribbon HF_V2 168 LEDs/m

LED Strip | 1 topLED 72 W DC 24 V

14.4 W/m | 1545 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0041MDI05000	72 W	7725 lm	2700 K	Diffused	White	90
C0041WDI05000	72 W	8067 lm	3000 K	Diffused		90
C0041NDI05000	72 W	8650 lm	4000 K	Diffused		90

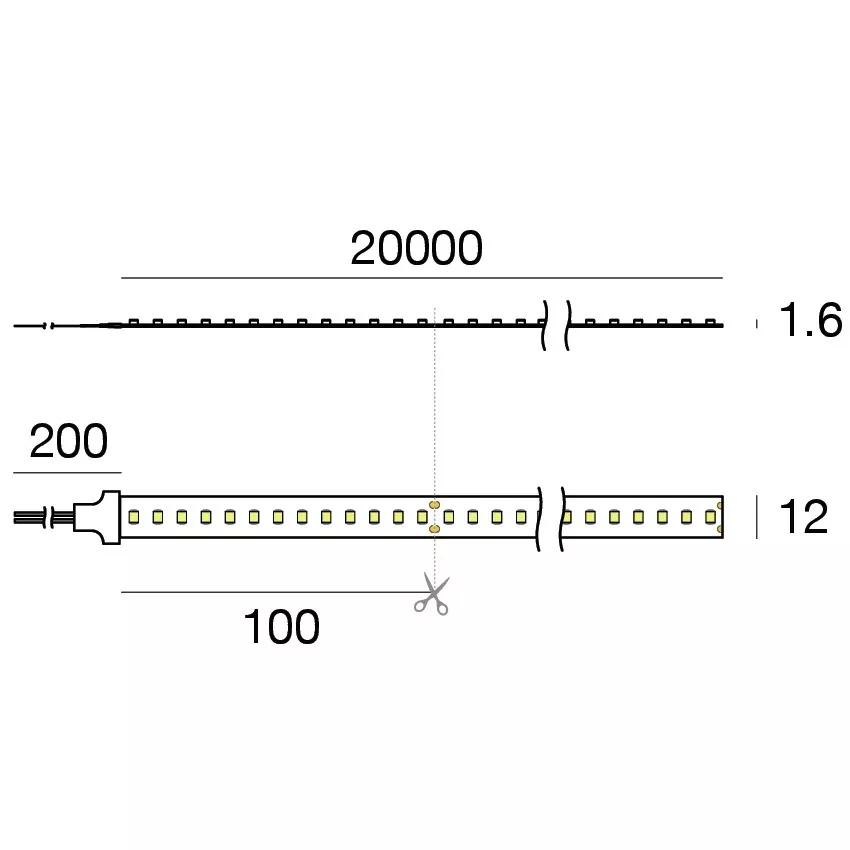

Ribbon Distance 130 LEDs/m

LED Strip | 1 topLED 192 W DC 48 V

9.6 W/m | 993.1 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0049MDI20000	192 W	19862 lm	2700 K	Diffused	White	90
C0049WDI20000	192 W	20812 lm	3000 K	Diffused	White	90
C0049NDI20000	192 W	21647 lm	4000 K	Diffused	White	90

Ribbon HD 160 LEDs/m

LED Strip | 1 topLED 60 W DC 24 V

12 W/m | 1278.8 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0045MDI05000	60 W	6394 lm	2700 K	Diffused	95
C0045WDI05000	60 W	6982 lm	3000 K	Diffused	95
C0045NDI05000	60 W	7174 lm	4000 K	Diffused	95

Ribbon HF_V2 238 LEDs/m

LED Strip | 1 topLED 98 W DC 24 V

19.6 W/m | 2125.6 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0042MDI05000	98 W	10628 lm	2700 K	Diffused	90
C0042WDI05000	98 W	11080 lm	3000 K	Diffused	90
C0042NDI05000	98 W	11750 lm	4000 K	Diffused	90

Ribbon HE 160 LEDs/m

LED Strip | 800 topLED 60 W DC 24 V

12 W/m | 1467.8 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0043MDI05000	60 W	7339 lm	2700 K	Diffused	85
C0043WDI05000	60 W	7689 lm	3000 K	Diffused	85
C0043NDI05000	60 W	8200 lm	4000 K	Diffused	85

Ribbon HD 160 LEDs/m

LED Strip | 1 topLED 108 W DC 24 V

21.6 W/m | 2341 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
C0046MDI05000	108 W	11705 lm	2700 K	Diffused	95
C0046WDI05000	108 W	11403 lm	3000 K	Diffused	95
C0046NDI05000	108 W	12643 lm	4000 K	Diffused	95

Ribbon Slim_V2 120 LEDs/m

LED Strip | 1 topLED 48 W DC 24 V

9.6 W/m | 805.8 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0047MDI05000	48 W	4029 lm	2700 K	Diffused	White	90
C0047WDI05000	48 W	4214 lm	3000 K	Diffused	White	90
C0047NDI05000	48 W	4653 lm	4000 K	Diffused	White	90

Ribbon Distance 130 LEDs/m

LED Strip | 1 topLED 207 W DC 48 V

13.8 W/m | 1391.2 Lm/m

LLC

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	CRI
C0050MDI15000	207 W	20868 lm	2700 K	Diffused	White	90
C0050WDI15000	207 W	21688 lm	3000 K	Diffused	White	90
C0050NDI15000	207 W	23132 lm	4000 K	Diffused	White	90

Downloads

2D/3D Drawings

Accessories
