Ribbon Plus
C0029NDI05000
The code C0029NDI05000 will be valid as of March 2025. You can still continue with this code or use the 82194 code valid until March 2025.Indoor / Flex Lights
LED Strip | 700 topLED 72 W DC 24 V
14.4 W/m | 1762 Lm/m
| IP | IP20 |
|---|---|
| Optic | Diffused |
| CCT | 4000 K |
| CRI | >90 |
| Delivered lumens | -- |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

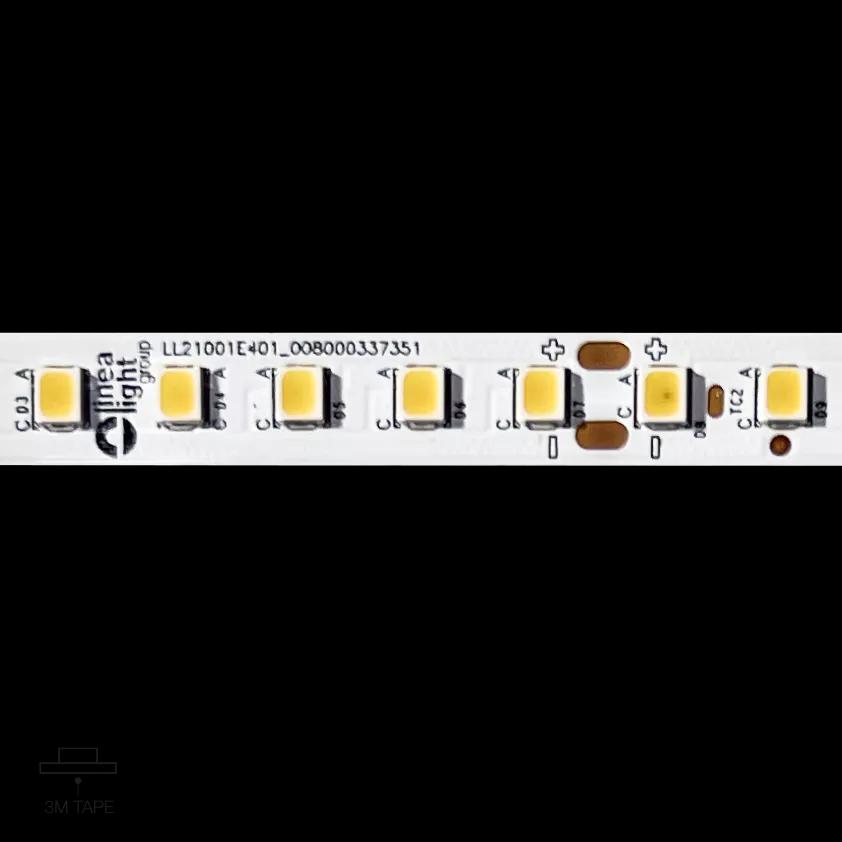

Single emission led strip for indoor application. The natural white LED light source with a diffused light distribution is composed of 700 topled LEDs with CCT of 4000 K and a CRI >90; the source luminous flux is 10110 lm, with a 140.4 lm/W nominal luminous efficacy.
The device body and features a white finish. The ingress protection degree is IP20; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 72 W. The power supply cable is included and features a 2x 0.3 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
