Silicone
C0052MDI05019
The code C0052MDI05019 will be valid as of March 2025. You can still continue with this code or use the C00502WHMDI code valid until March 2025.Outdoor / Flex lights
LED Strip | 1 topLED 48 W DC 24 V
9.6 W/m | 808 Lm/m
| IP | IP67 |
|---|---|
| Optic | Diffused |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | -- |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

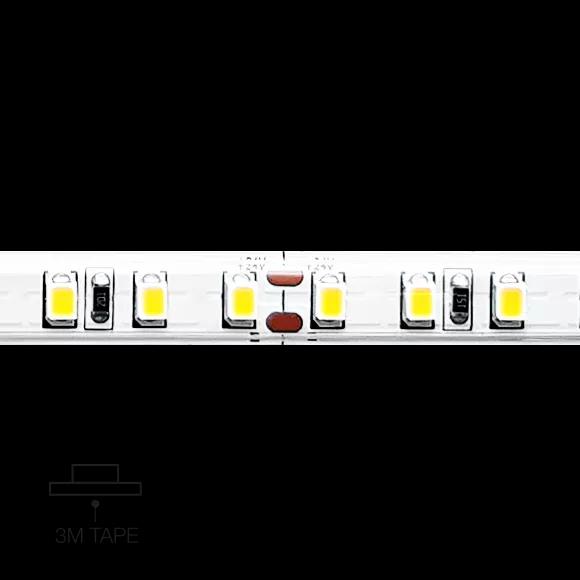

Single emission led strip for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 600 stripled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 4040 lm, with a 84.2 lm/W nominal luminous efficacy.
The device body is made of silicone and features a transparent finish. The ingress protection degree is IP67; the total weight is of 0.4 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 48 W. The power supply cable is included and features a 0.3 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
