Ribbon
C0043MDI05000
The code C0043MDI05000 will be valid as of March 2025. You can still continue with this code or use the C00506WHMDI code valid until March 2025.Indoor / Flex Lights
LED Strip | 1 topLED 60 W DC 24 V
12 W/m | 1467.8 Lm/m
| IP | IP20 |
|---|---|
| Optic | Diffused |
| CCT | 2700 K |
| CRI | 83+ |
| Delivered lumens | -- |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

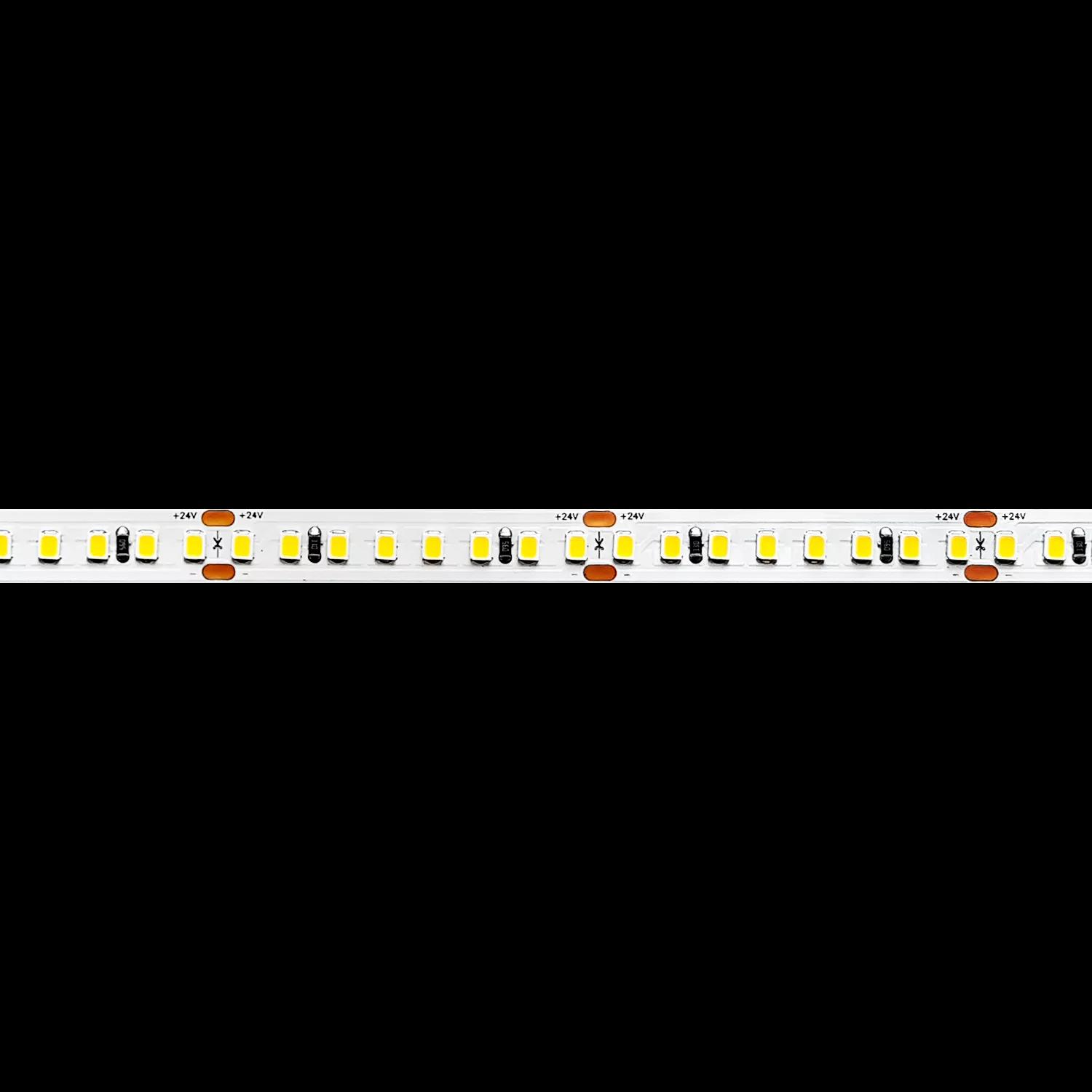

Single emission led strip for indoor application. The super warm white LED light source with a diffused light distribution is composed of 800 stripled LEDs with CCT of 2700 K and a CRI 83+; the source luminous flux is 7339 lm, with a 122.3 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 60 W. The power supply cable is included and features a 0.2 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
