C0049WDI20000
The code C0049WDI20000 will be valid as of March 2025. You can still continue with this code or use the C00514WHWDI code valid until March 2025.Indoor / Flex Lights
LED Strip | 1 topLED 192 W DC 48 V
9.6 W/m | 993.1 Lm/m
| IP | IP20 |
|---|---|
| Optic | Diffused |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | -- |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

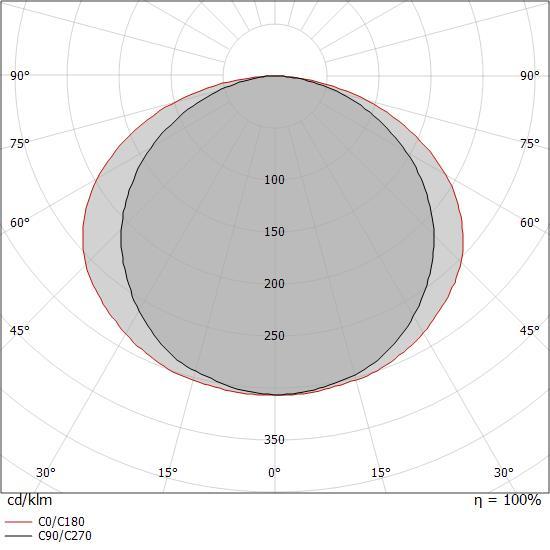

Single emission led strip for indoor application. The warm white LED light source with a diffused light distribution is composed of 2600 stripled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 20812 lm, with a 108.4 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 1.6 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 192 W. The power supply cable is included and features a 0.2 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99784
Stormshield - On/Off Driver 48V 150W 3.13A | Switching Driver 180~295V AC / 255~417V DC 60 W
| Family | Switching Driver |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99785
Stormshield - On/Off Driver | On/Off Driver 100~305V AC / 142~431V DC 240 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83177
Lumiquad - Mono CV DMX/RDM 1ch - 1-78 W DC - 6.5A 12V / 1-156 W DC 6.5A 24V / 1-312 W DC - 6.5A 48V | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP10 |
| Operation | CV |
Code C-E400003
DALI-2 PUSH Driver - 1-150 W DC stripLED - 3.2A 48V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
