Ribbon PRO
C0024MDI05000
The code C0024MDI05000 will be valid as of March 2025. You can still continue with this code or use the 82156 code valid until March 2025.Indoor / Flex Lights
LED Strip | 640 topLED 33.5 W DC 24 V
6.7 W/m | 927.6 Lm/m
| IP | IP20 |
|---|---|
| Optic | Diffused |
| CCT | 2700 K |
| CRI | >90 |
| Delivered lumens | -- |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
Technical description

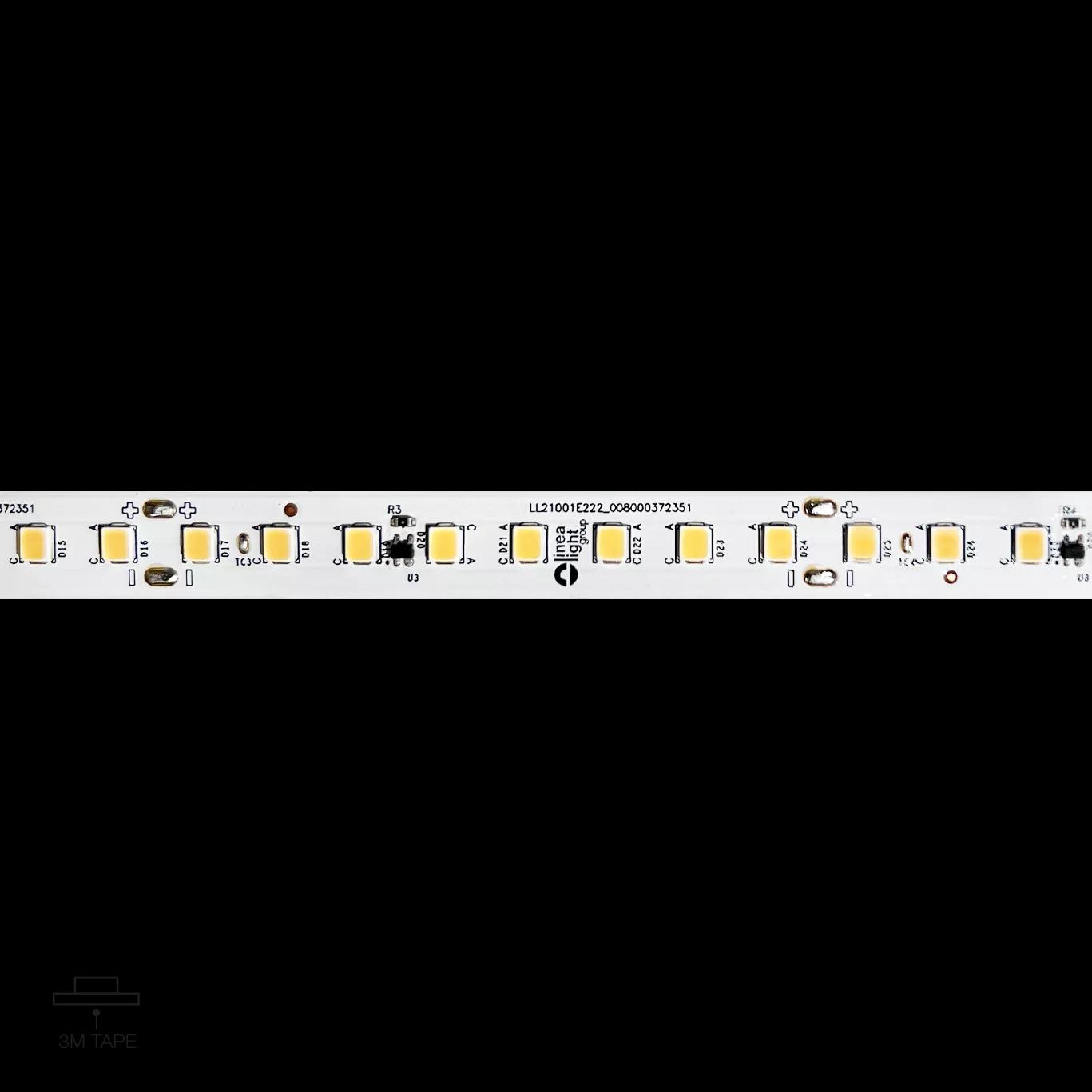

Single emission led strip for indoor application. The super warm white LED light source with a diffused light distribution is composed of 640 topled LEDs with CCT of 2700 K and a CRI >90; the source luminous flux is 4638 lm, with a 138.4 lm/W nominal luminous efficacy.
The device body and features a white finish. The ingress protection degree is IP20; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 33.5 W. The power supply cable is included and features a 0.3 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profiles
You've seen 4 products out of 7
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
